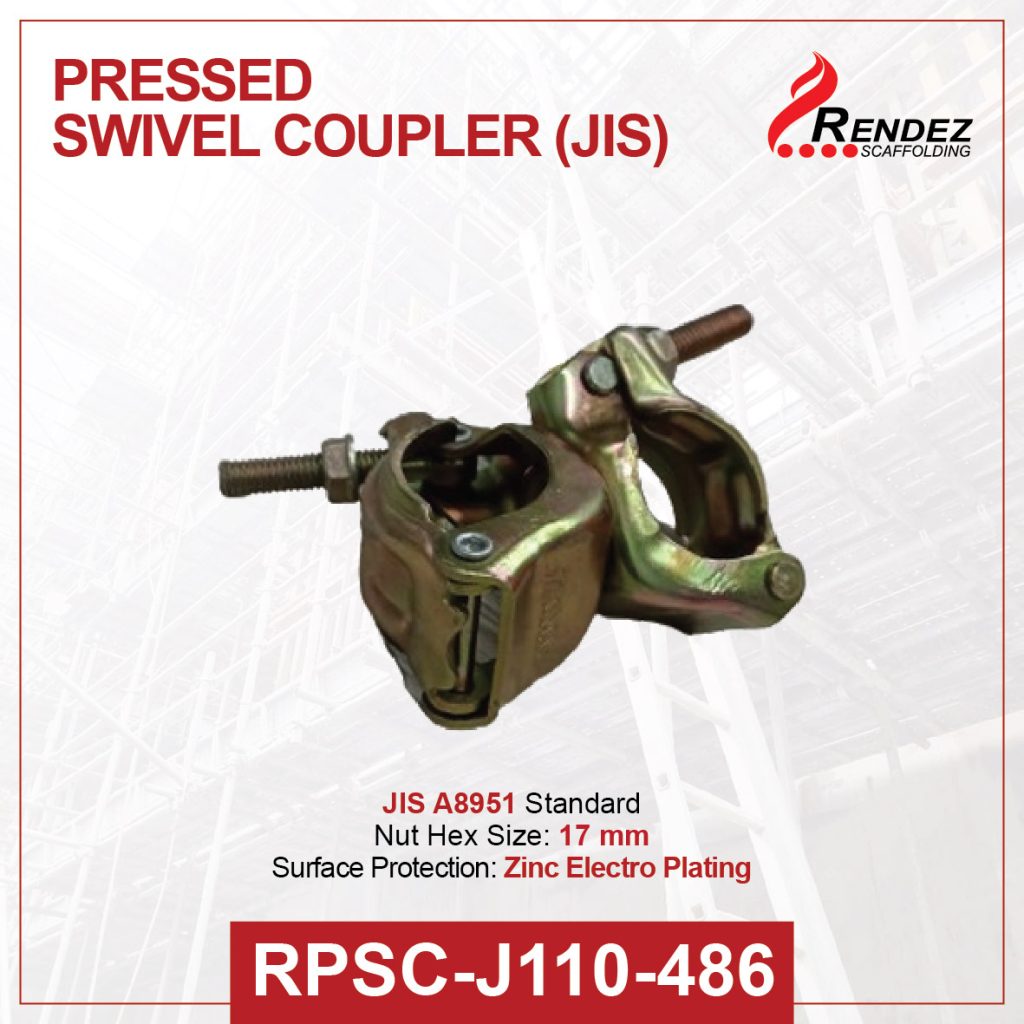

RENDEZ PRESSED SWIVEL COUPLER JIS A8951

Pressed Swivel Coupler JIS
Pressed Swivel Coupler JIS

RENDEZ PRESSED SWIVEL COUPLER JIS A8951

RPSC-J110-486
JIS A 8951 Standard
Size : 48.6 MM, Nut Hex
Nut HEX: 17 MM
Weight : 0.7 kg
Surface Protection :
Zinc Electro Plating

DESCRIPTION :
Clamp Swivel scaffolding conform JIS A8951 Standard with material and thickness of pressed steel plate +/- 3 mm is entered to the light-duty class. Commonly used in civil and infrastructure projects. With Swivel function (360 degrees) in a scaffolding structure greatly simplify and strengthen the Rendez assembly of tubular scaffolding system itself. Angle of 360 degrees (free) from clamp scaffolding is very important because the scaffolding was built to be easier, more safety, and more powerful. The main function of this clamp is binding between the pipes position Horizontal or vertical position with diagonal bracing to reinforce the stability and structure of the scaffolding. This material complete with Zinc Electro Plating

FEATURE :
1. Zinc electro plating surface protection
2. Recommended for onshore/mainland and medium duty usage
